David_Shay

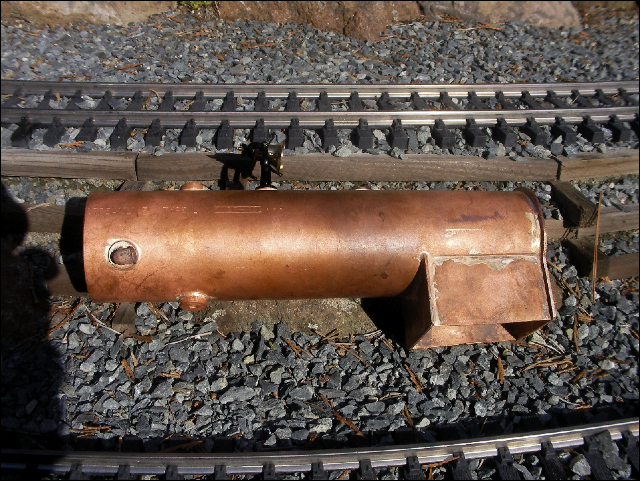

Home made strait boiler

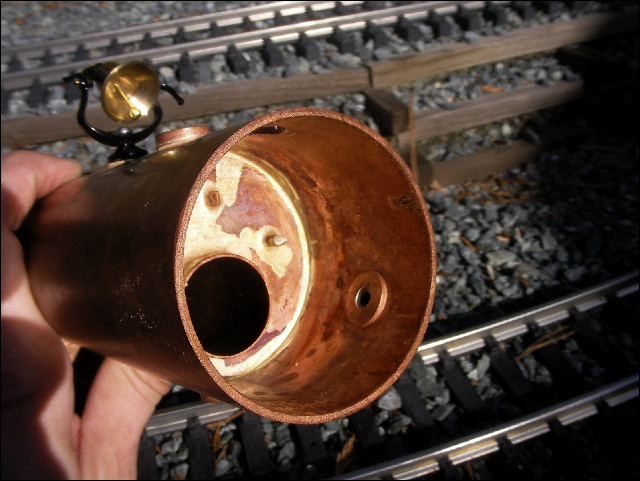

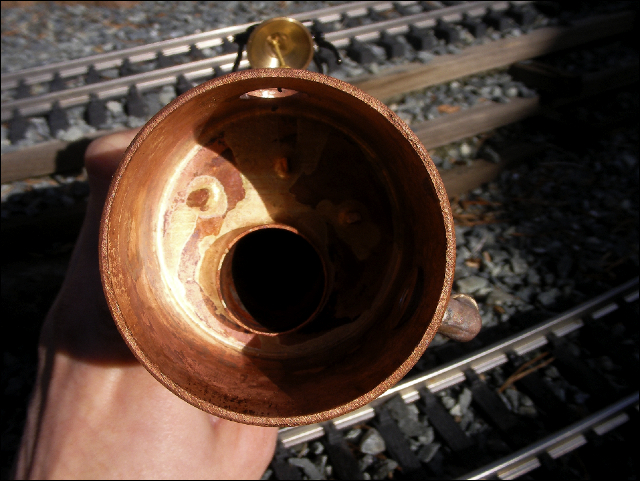

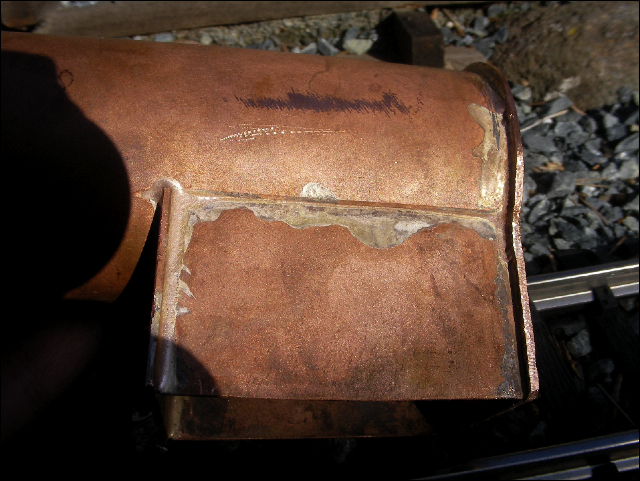

Inside the dry firebox. It will be fired by a ceramic burner.

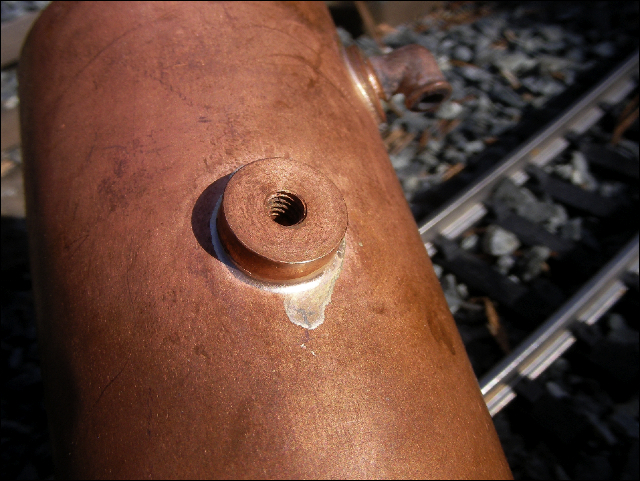

This fitting, located on the bottom of the boiler barrel has a blind, threaded, hole to attach it to the chassis.

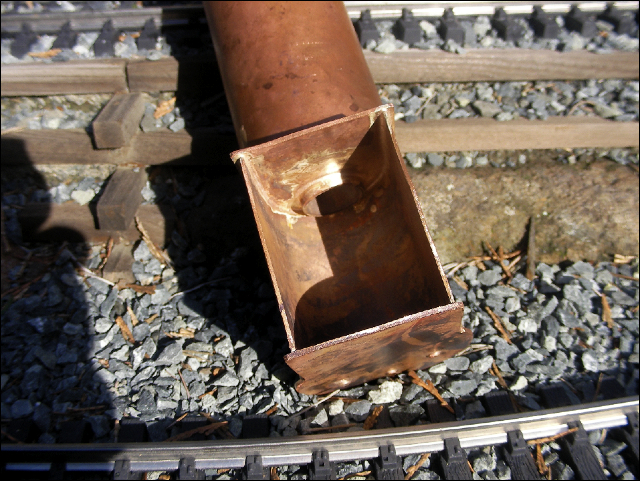

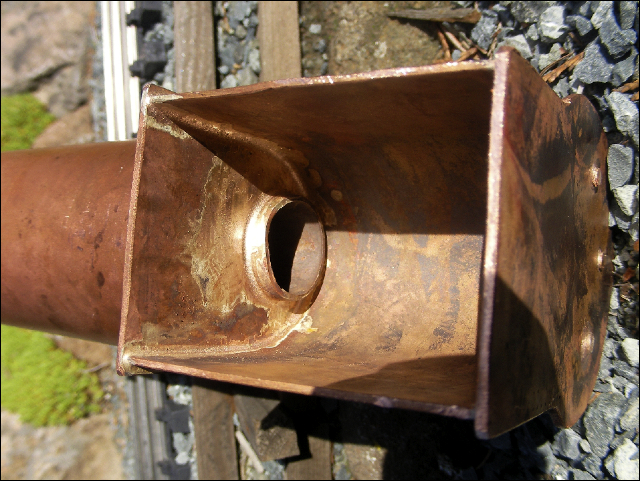

The integrated smoke box, with a single flue and a side inlet for the engine exhaust.

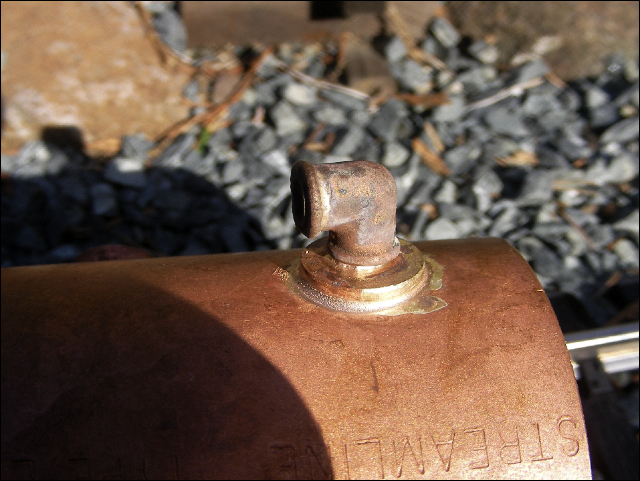

Steam exhaust fitting.

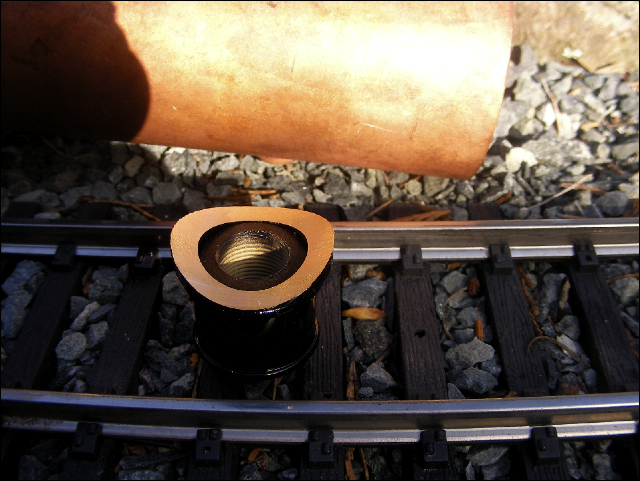

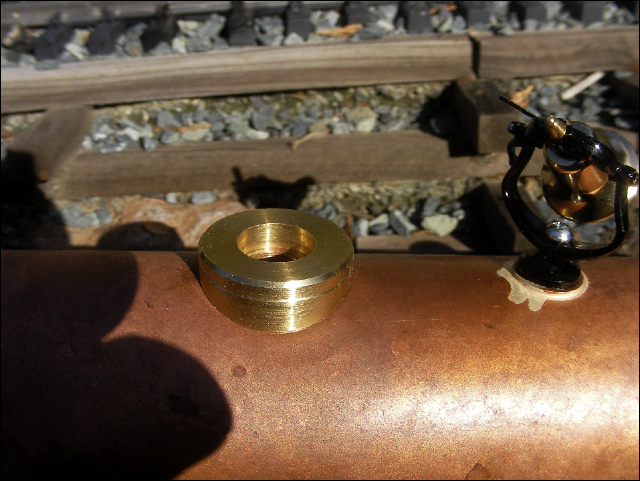

Main dome saddle and Accucraft bell.

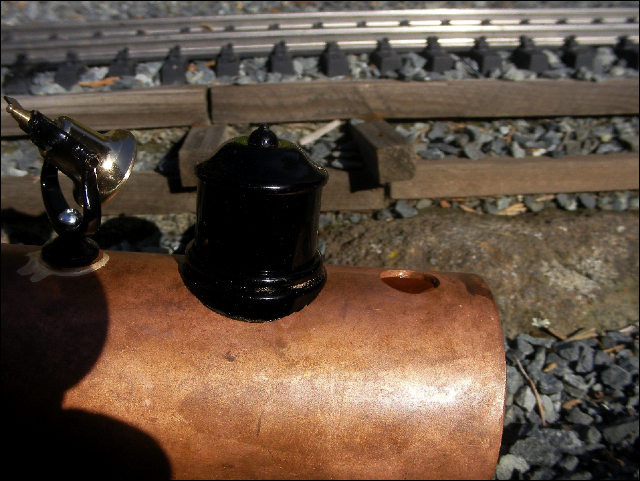

The dome with its body in place.

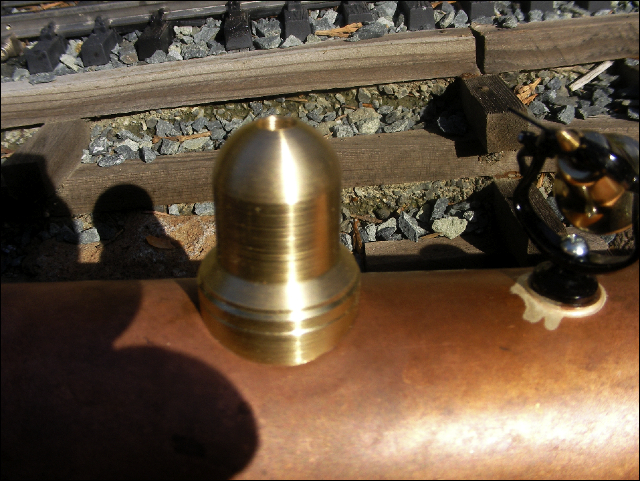

I machined the Accucraft sand dome to fit my larger diameter boiler.
